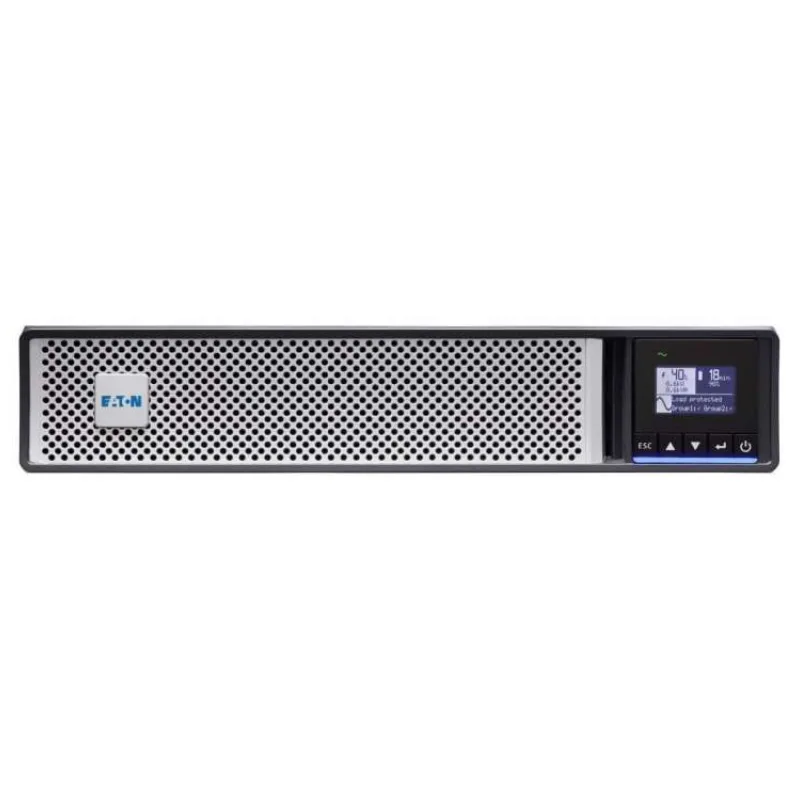

Eaton 5PX Gen2 UPS, 1000VA/1000 W, Input: C14, Output: (8) C13, Rack…
GENERAL SPECIFICATIONS PRODUCT NAME Eaton 5PX Gen2 UPS CATALOG NUMBER 5PX1000IRTNG2 PRODUCT LENGTH/DEPTH 448 mm PRODUCT HEIGHT 85.5 mm PRODUCT WIDTH 438 mm PRODUCT WEIGHT 19.6 kg WARRANTY 3 year on…
Specifikacia Eaton 5PX Gen2 UPS, 1000VA/1000 W, Input: C14, Output: (8) C13, Rack…
GENERAL SPECIFICATIONS PRODUCT NAME Eaton 5PX Gen2 UPS CATALOG NUMBER 5PX1000IRTNG2 PRODUCT LENGTH/DEPTH 448 mm PRODUCT HEIGHT 85.5 mm PRODUCT WIDTH 438 mm PRODUCT WEIGHT 19.6 kg WARRANTY 3 year on electronics, 2 year on battery COMPLIANCES IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 RoHS Compliant REACH UL 1778 CSA 22.2 CERTIFICATIONS CE cTUVus EAC Cm UKCA Ukr ENERGY STAR certified MODEL CODE Eaton 5PX 1000i RT2U Netpack G2 TECHNICKÉ ÚDAJE PRODUKTU SECONDARY FREQUENCY - MAX 60 Hz OUTPUT WAVEFORM Sine wave MAX NUMBER OF BATTERY PACKS 4 WATTAGE 1000 W OUTPUT POWER FACTOR 1 FORM FACTOR Rack/tower INCLUDES NETWORK CARD Yes INPUT CONNECTION C14 INPUT VOLTAGE - MIN 150 V OUTPUT VOLTAGE - MAX 240 V SECONDARY FREQUENCY - MIN 50 Hz SOFTWARE COMPATIBILITY Eaton Intelligent Power Manager, Eaton Intelligent Power Protector BATTERY REPLACEMENT User replaceable BATTERY TYPE Lead-acid maintenance-free (replaceable) SPECIAL FEATURES Automatic Voltage Regulation (AVR)|Energy efficient, reduce energy and cooling costs|Delivers clean sinewave output|Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)|LCD display for real-time status and measurements|Network card and rackmounting kit delivered as standard|Long backup time with up to 4 optional EBM|Meter energy consumption (down to the managed outlet groups)|Versatile product for rack or tower installation|1 slot for optional com card (Network management card, Relay card or Network and Industrial card)|Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)|1 USB port + 1 serial port OUTPUT VOLTAGE - MIN 200 V COLOR Black/silver EXTENDED BATTERY CAPABILITY Yes OUTPUT VOLTAGE RANGE 230 V (+6%/-10%) TOPOLOGY Line-interactive INPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240V) INPUT FREQUENCY RANGE 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode INPUT VOLTAGE - MAX 294 V VOLTAGE TYPE AC PHASE (OUTPUT) 1 BATTERY MANAGEMENT ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units INTEGRATED FUNCTIONALITY Network Mangement AUTO SHUTDOWN FUNCTION Yes NUMBER OF OUTPUTS C13 8 VA RATING 1000 VA POTENTIAL FREE SWITCH CONTACT Yes RECEPTACLE (8) C13 PHASE (INPUT) 1 PACKAGE CONTENTS Network Management Card|Rack-mounting kit|(2) Supports for tower mounting|Cable locking system|USB cable|Serial cable|(2) IEC-IEC cables|Quickstart guide|Safety instructions NOISE LEVEL
